Dual Tables PCB Laser Depaneling Machine Without Strian

Laser depanaleing machine is mainly used in the cutting 5g materials such as CCM / COB / LCP / MPI / COF / cop / pi / CPI in consumer electronics.
  • Item no.:

    SMTL350
  • Payment:

    TT in advance
  • Product origin:

    Made in China
  • Color:

    White
  • Shipping port:

    Shenzhen
  • Lead Time:

    7-15 working days
  • Product Details

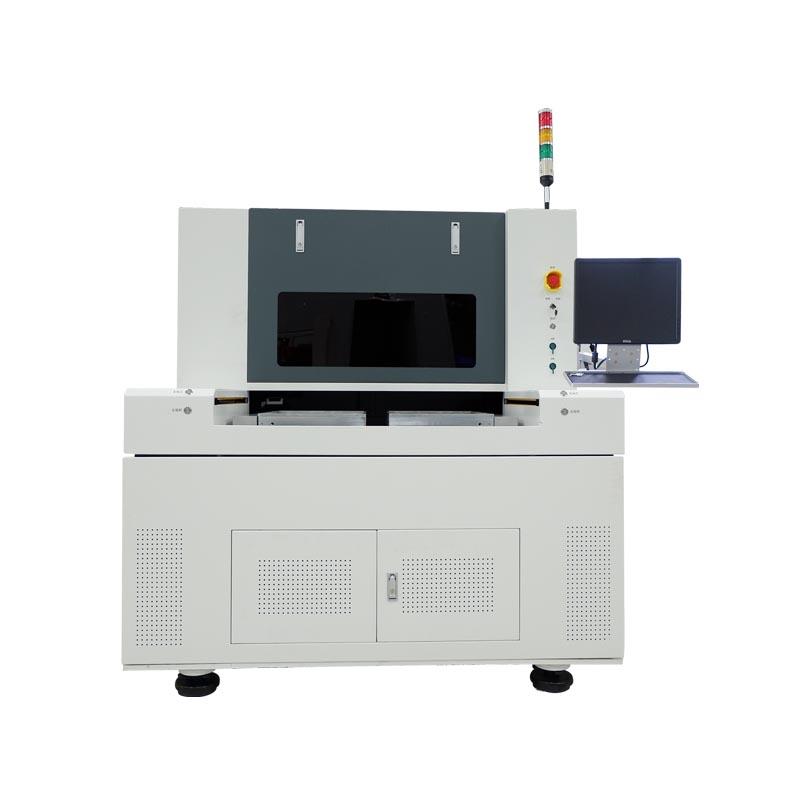

Dual Tables PCB Laser Depaneling Machine Without Strian


PCB Laser Depaneling Machine Overview:

The PCB laser depaneling machine integrates high-speed and high-precision optical processing system, independent process and processing path optimization system, which can accurately cut the shape and control the half cutting depth. The application of ultra short pulse ultraviolet laser has greatly improved the processing quality of products.


Some degree of mechanical stress for traditional depaneling is exerted on the boards. This inflicted stress can lead to delamination or cause a space to develop. These methods also require that the final connections between the boards and panel be removed. The bending stress can damage components close to the areas of necessary removal. Laser depaneling machine is the most recent tool in delaminating flex and rigid boards.



PCB Laser Depaneling Machine Features:
1. Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product
2. High quality laser, no contact processing, no burr and burr after cutting
3. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics
4. Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc


PCB Laser Depaneling Machine Spec:

Cutting Path

Straight line, oblique line, curve and other arbitrary graphics

Laser Wavelength

355nm

Laser Source

UV, picosecond

Positioning Precision of Worktable of Linear Motor

±3μm

Repetition Precision of Worktable of Linear Motor

±2μm

Effective Working Field

350mm x 500mm

Galvanometer Working Field Per One Process

50mmх50mm


PCB Laser Depaneling Machine Application:

laser depaneling



Our Service:

1. Guarantee for 12 months.

2. Maintenance for whole life.

3. We will provide the consumable parts at an resonable price.

4. 24 hours x 7days online service, free technical support.

5. Machine has been tested before delivery.

6. We have manual instruction and Guiding Videos for installation, operation and machine's using and maintenance.

7. Oversea on-site installation and trainning is available.

8. Vacuum & wooden case packaging is provided free of charge for sea shipment.

OUR CERTIFICATE:

PCB Router Certificate
